Ocean Surface Current Data

Started 2013-02-10 13:50:39 with Queries Performed: 6626 totaling 251.81 MB

Earth and Science Research (ESR) has a world-wide simulation of Ocean Surface Currents in Real-Time (OSCAR) which has been running since 1992. They have been modifying and testing the model for many years and are currently funded by NASA (previously funded by NOAA). For people with low-band width internet access, like sailboats, accessing and using their on-line data is not easy.

I setup a set of tools to convert their daily simulated results into a format called GRIB which can be viewed by many weather tools such as ViewFax (windows only, but runs under WINE on Linux). Older versions of ViewFax might not show any data -- upgrade to at least Version 5.0.56. To access this data I setup a email responder just like saildocs.

OSCAR data covers much of the world from 80N to 80S, spanning the globe from 180W to 180E. The resolution is in 1/3 degree increments. The time-frame is a 5 day resolution.

Once a day, usually at midnight Pacific Standard Time, the Seattle office updates their simulation of ocean surface currents. This snapshot represents their best estimation of what the ocean surface current is doing. They use a number of techniques and data sources for estimating ocean current flow. If you would like to see how their model compares to real data try reading Validation and Error Analysis of OSCAR Sea­surface Currents written in 2006.

How to Get the Data

You can retrieve the data by email using the following steps. Remember these are ocean currents, so the model does not extend to the shore line and are more accurate for the open ocean.

  1. Make Latitude and Longitude Box.
  2. Email "query (at) svsarana.com" with message: oscar:lat1,lat2,lon1,lon2
  3. Wait 30-60 seconds for an email response.
  4. View the attached data with a grib viewer (Not all viewers display current)
  5. See some examples.

Back to Top



Find Your Lat/Lon Area

The globe is split up into grids with lines running North-South and East-West. To define a box on the earth's surface specify your latitude in degrees, say 20N and 10N. Then limit the east-west sides of the box with your latitude, for example 120W to 110W.

Use these corners to fill in the OSCAR command: oscar:lat1,lat2,lon1,lon2. In this example the command becomes:

oscar:20N,10N,120W,110W

The area is shown highlighted on this map.

World Lat-Lon Boxes

Back to Top



Email Your Requested Area.

Now that you know your target area, send the request in the message body to "query (at) svsarana.com"

oscar:20N,10N,130W,120W

Note the subject is ignored.

Back to Top



Automatic Response

You will receive an email response with information about the GRIB file including it's origin. The attachment will contain the grib file for your requested area.

OSCAR (Ocean Surface Current Analysis Real-time) contains near-surface ocean current estimates, derived using various satellites and in situ instruments.

Data are on a 1/3 degree grid with a 5 day resolution. OSCAR is generated by Earth Space Research (ESR).  For project details see http://www.esr.org/oscar_index.html

All data is generated by computer models subject to error.  Use data at your own risk.  To view this data online see http://www.oscar.noaa.gov

Data extracted from oscar_vel7423.nc.gz last updated 2013-2-06 00:03

Back to Top



Viewing Your Data

With Airmail's email program for HF radios, you can just click on the attachment and ViewFax (version 5.0.56 or newer) will start and display the data. Otherwise, save the attachment and open your GRIB viewer. In your viewer you'll need to open the saved attachment "OSCAR-xxxxxxxx.grb" file to view it.

You can mouse over the current arrows in ViewFax to get direction and speed.

Back to Top



Some Example Current Data Using ViewFax

Here are several examples of what to expect when using OSCAR data.

OUTSIDE BAJA

For the Outside of Baja Mexico send this request to query (at) svsarana.com

oscar:32N,20N,120W,110W

You'll get back a 5.2KB file that will look like the following in your viewer.

Image of Outside Baja Ocean Current Data

The data near shore is not perfectly clipped to the shoreline but it gives you a good idea of what is happening offshore.



MAIN-LAND MEXICO

For the Main Land of Mexico send this request to query (at) svsarana.com

oscar:25N,15N,110W,93W

You'll get back a 4.6KB file that will look like the following in your viewer.

Image of Main-land Mexico Ocean Current Data



CENTRAL AMERICA

For Central America send this request to query (at) svsarana.com

oscar:15N,5N,95W,78W

You'll get back a 7.6KB file that will look like the following in your viewer.

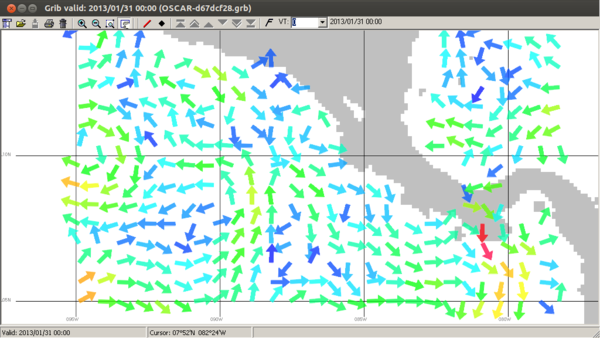

Image of Central America Ocean Current Data



ECUADOR-GALAPAGOS

Where OSCAR really shines for sailors is in highlighting the equatorial and counter equatorial currents. For example the passage from Panama to Ecuador or the Galapagos.

oscar:5N,5S,93W,77W

The 7.2KB file reveals areas of stronger currents.

Image of Ecuador-Galapagos Ocean Current Data



Back to Top

Additional Resources

There are not many current models to compare. However NOAA has an Atlantic Model that can be fetched from "query (at) saildocs.com" NOTE this is not svsarana.com! Use the command "rtofs:lat1,lat2,lon1,lon2"

Additional information about OSCAR can be found at NOAA.
